Classic Steel
Frame
700c x 23c
tyres
Alloy Caliper
Brakes
Vinyl Covered
Street Style Saddle
Simple, fun and single speed.
Fixies not only look great, but they're incredibly easy to maintain, come with minimal components and gives you full control & handling of the bike.
Flip-Flop Rear Hub
Our fixie comes with 2 options "“ fixed gear or free wheel. Freewheel allows you to coast, where as fixed gear gives you total control, even back-pedal braking.
Alloy Triple-Wall Rims & 23c Tyres
Light Alloy Triple-wall rims provide excellent strength and reliability, and come with 700c x 23c tyres for minimal rolling resistance.
Steel Frame
Classic Steel Chassis with Steel straight bladed forks gives you the old-school feel as well as high strength and durability for years to come. Easier to repair and maintain.
Vintage/Retro Look
Old school cool with a vintage vinyl saddle with rivets and retro coloured grips for good comfort.
Reliable Braking
Not only can you pedal brake (with a fixed gear hub set-up), the fixie gives you 2 more braking options, using the front and rear caliper brakes. Cheap & easy to maintain.
The Blueprints
An awesome package with the following components:
- A. Retro Saddle

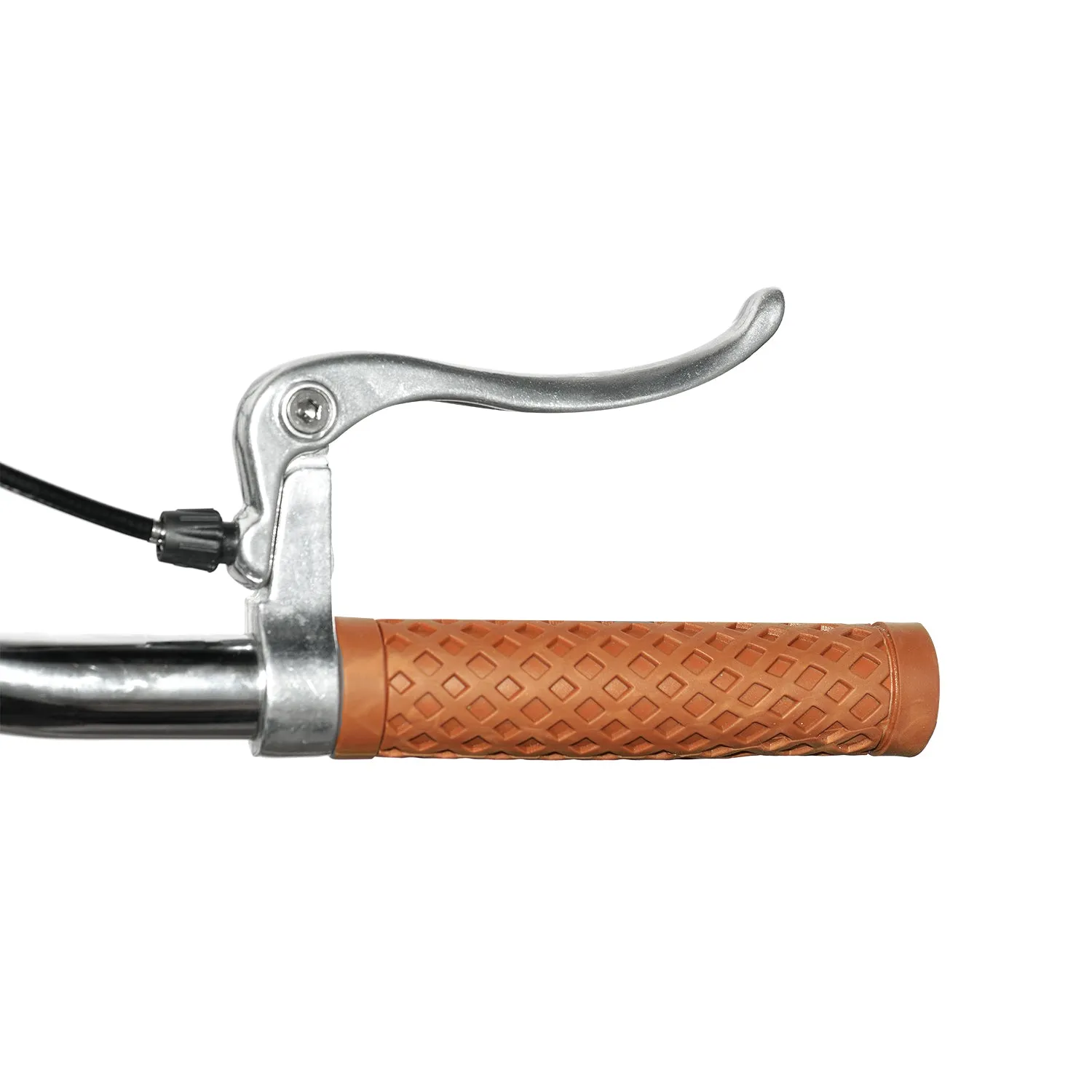

- B. Retro Grips
- C. Caliper Brakes
- D. Flip-Flop Rear Hub
- E. Alloy Triple-Wall Rims
Where to ride?

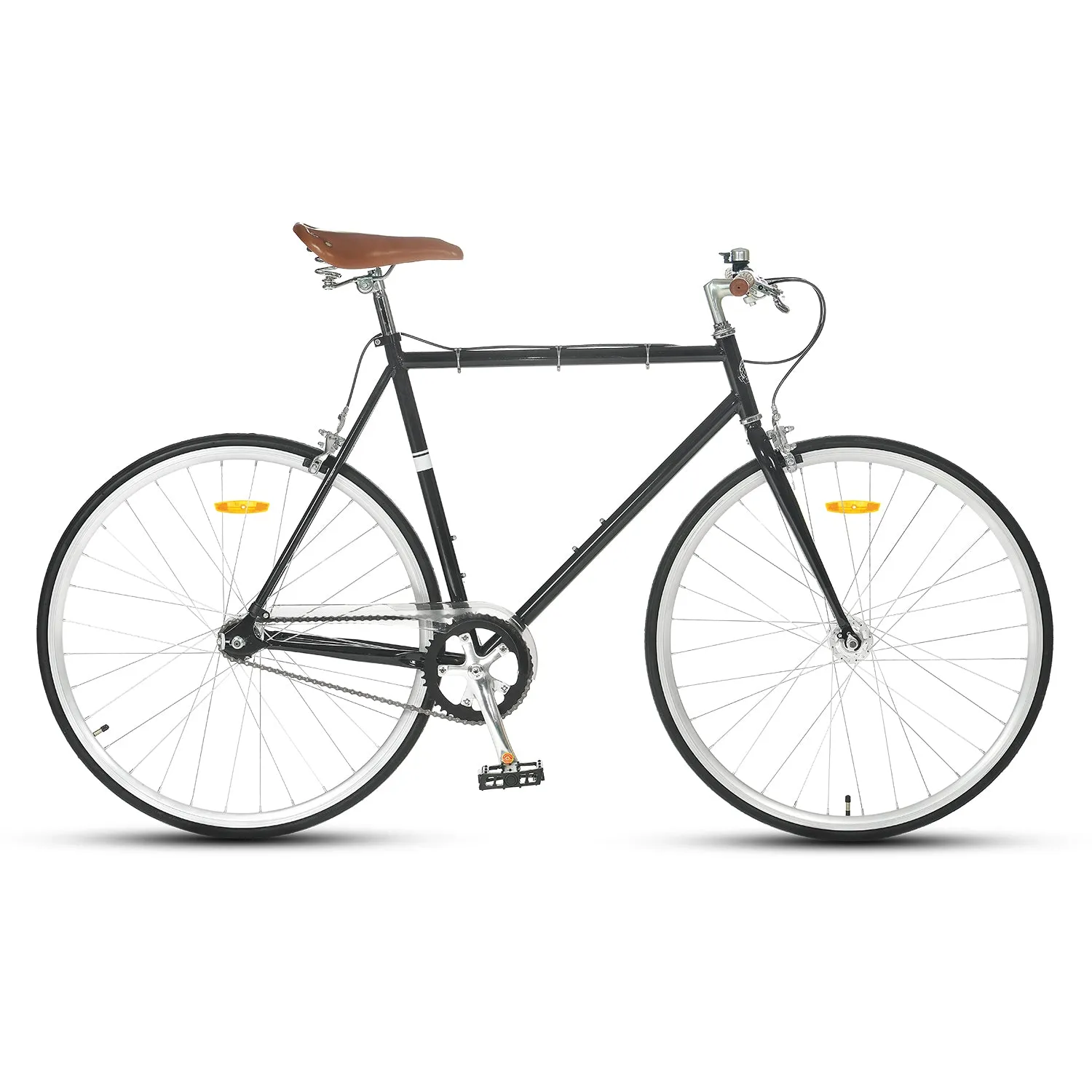

Specification
Technical Specifications
| Frame | 700c Steel TIG Welded Fixie Frame with Steel Straight Bladed Forks |
|---|---|
| Handlebars | Steel Low Rise Handlebars with Alloy Stem and Rubber Grips |
| Derailleur | - |
| Crankset | Alloy 46t Steel Chainwheel, Alloy 170mm Cranks |
| Brakes | Alloy Caliper Brakes with Alloy Levers |
| Saddle | Vinyl Covered Street Style Saddle |
|---|---|
| Wheels | Alloy Triple Wall 32h Rims, Alloy Hubs, Rear Flip Flop & 700c x 23c tyres |
| Special Features | Rear Flip Flop Hub, Removable Plastic Chaincover |
| Warranty | Lifetime warranty on frame and fork |
| Carton Size | 128 x 17 x 72 (L x W x H, cm) |
Bike Sizing Guide
| Frame Size Number | 53cm | 56cm |
| Wheel Size | 700c | 700c |
| Suggested Height | 175-185cm | 180-195cm |
| Minimum Suggested Inseam | 86cm | 88cm |
| A - Seat Tube | 53cm | 56cm |
| B - Seat Tube Angle | 75deg | 75deg |
| C - Head Tube Length | 11.5cm | 13.5cm |
| D - Effective Top Tube | 52.9cm | 54.5cm |
| E - Chainstay length | 39cm | 39cm |
| F - Wheelbase | 97cm | 98cm |
| G - Standover | 81cm | 83cm |
