The all-analog PW-3 delivers pro wah tones in a rugged, space-saving design that conserves precious real estate on your pedalboard. The PW-3’s Rich mode has a uniquely full wah voice that retains the low-end definition and fullness lost with typical wah circuits. Want a more traditional tone? Just flip the rear-panel switch to Vintage mode for that classic wah vibe.

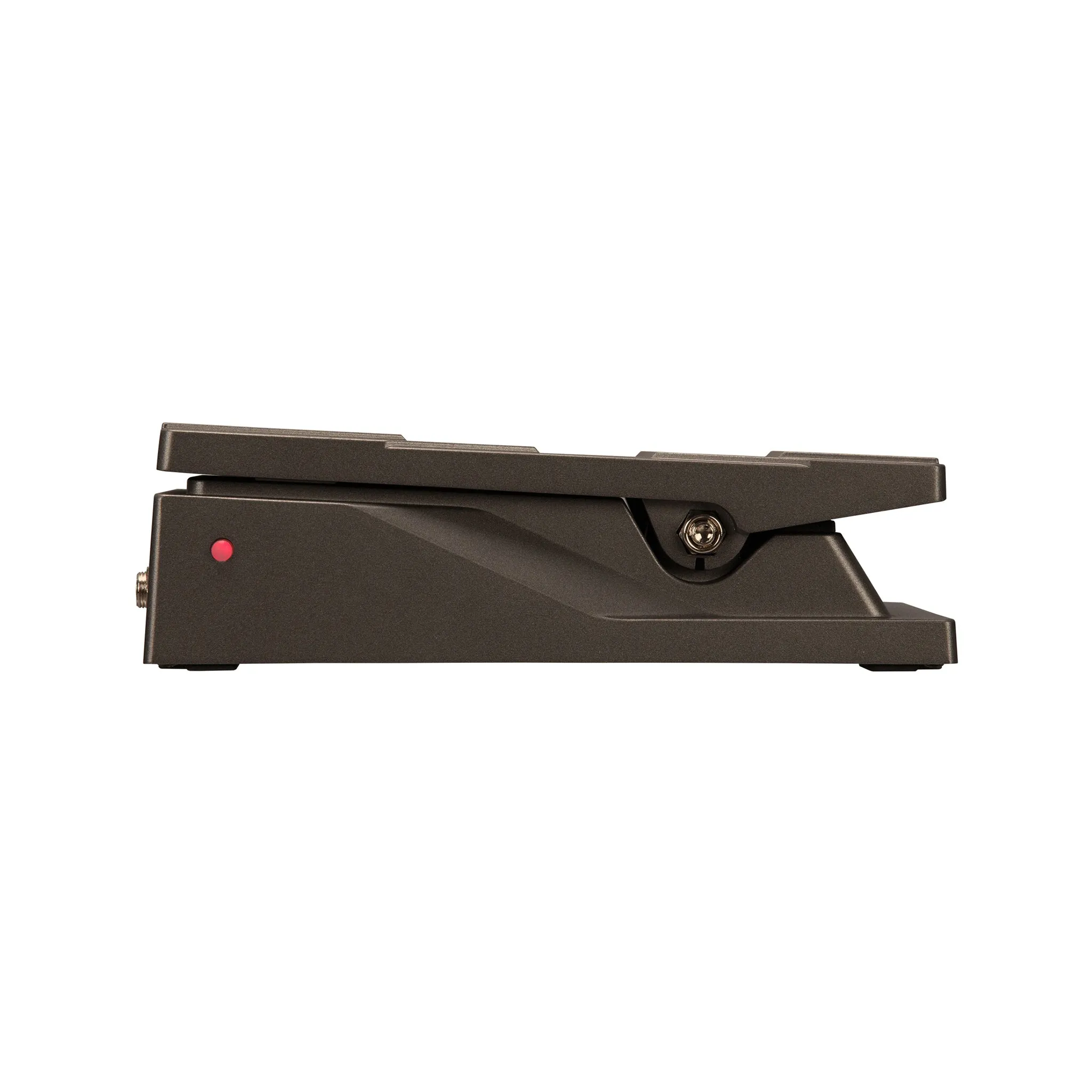

The PW-3 strikes the perfect balance between practicality and playability. Its die-cast aluminium chassis is solid and substantial underfoot, and the long, smooth pedal action is highly responsive and feels great. The PW-3's status LEDs on each side of the pedal makes it easier to see when the wah is activated.
Specifications:

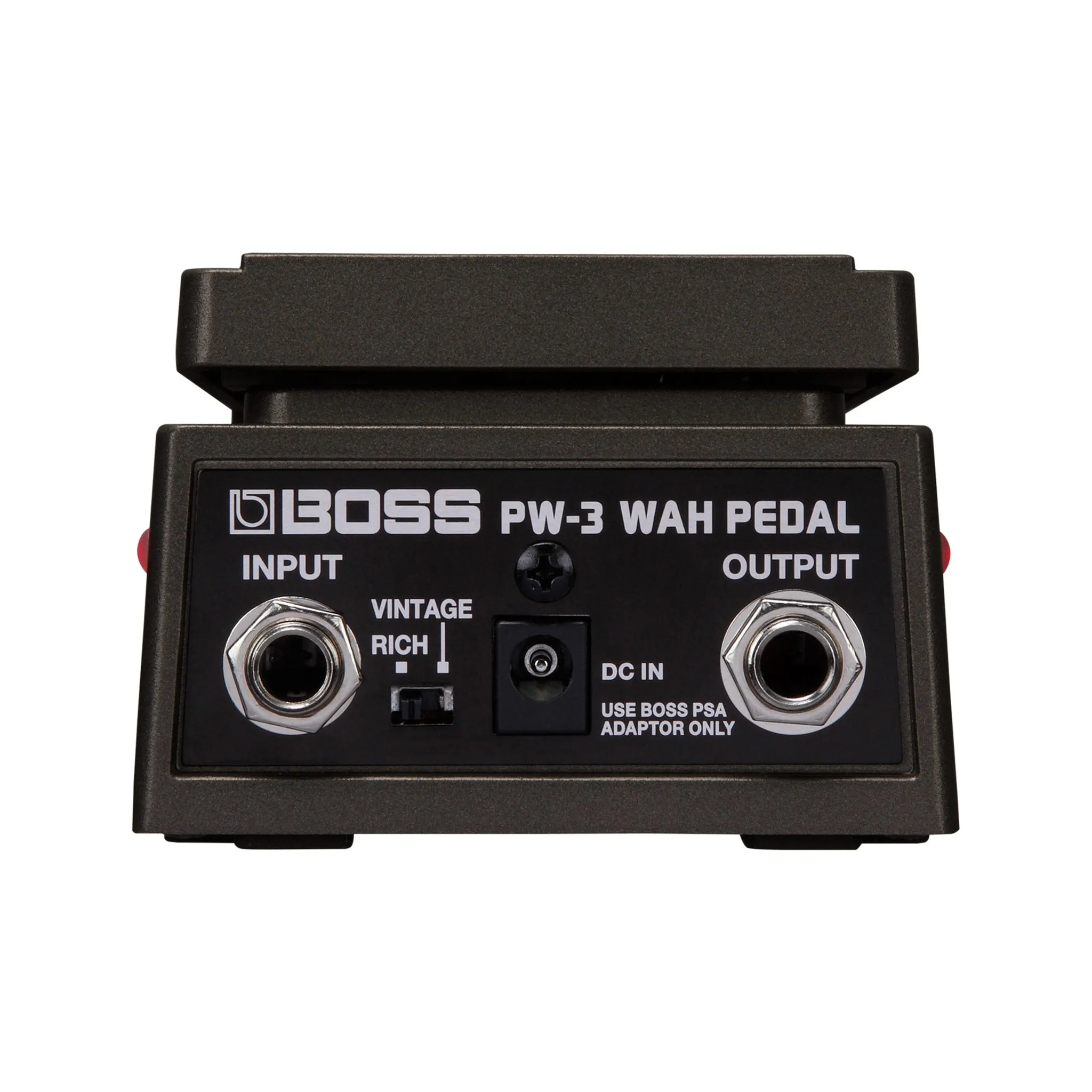

- Connectors: INPUT jack - 1/4-inch phone type, OUTPUT jack - 1/4-inch phone type, DC IN jack
- Indicators: Dual indicator
- Controls: Pedal, Tone switch
- Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adaptor (PSA series: sold separately)
- Current Draw: 25 mA
- Accessories: Owner's Manual, Alkaline battery (9 V, 6LR61), Sheets (for adjusting the force required to turn the wah on/off)
- Dimensions (W X D X H): 80 mm (3-3/16 inches), 192 mm (7-9/16 inches), 58 mm (2-5/16 inches)
- Weight: 800 g (1 lb 13 oz)
